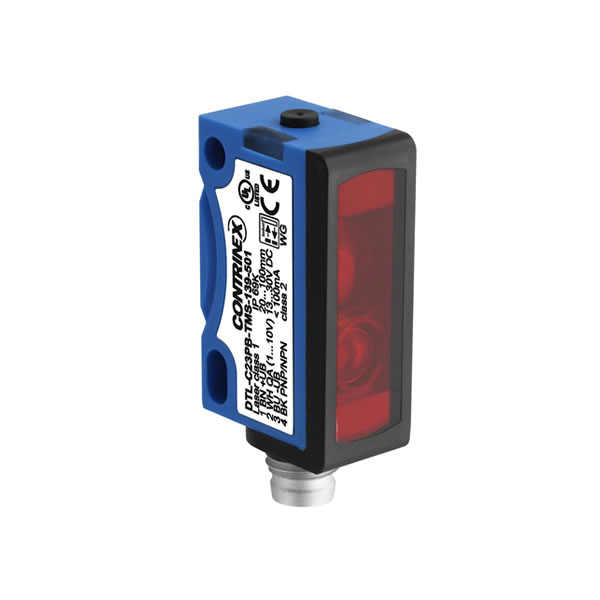

Contrinex DTL-C23PB-TMS-139-501 Photoelectrics Sensor
- Connection：M8 4-pin
- Polarity and Output：Light-on/Dark-on + 1...10 V
- Stock or Delivery time：In stock
- Tags: Contrinex,Photoelectrics Sensor,Distance,DTL-C23PB-TMS-139-501
Do you have any interest in purchasing this product or need further information? Feel free to reach out to our customer service team by phone or via QQ. If you can't find the specific product you're looking for, don't hesitate to contact us for assistance anytime.
Product Detail
Contrinex DTL-C23PB-TMS-139-501 Photoelectrics Sensor Distance Distance diffuse 20 x 34 (C23) 20...100 mm ABS Teach button Laser class 1, red 650 nm
DTL-C23PB-TMS-139-501 Specifications:
Operating range20...100 mm
Switching frequency max.1000 Hz
Sensing Linearity± 0.25 mm
Supply voltage13...30
Repeatability< 0.25 mm
PolarityPNP/NPN auto-detect
OutputLight-on/Dark-on + 1...10 V
Sensitivity adjustmentTeach button
ConnectionM8 4-pin
Housing size [mm]20 x 34 (C23)
Enclosure ratingIP 67 / IP 69K
Housing materialABS
Resolution0.12 mm
Temperature range-20...+60°C
Light sourceLaser class 1, red 650 nm
Operating principleDistance diffuse
