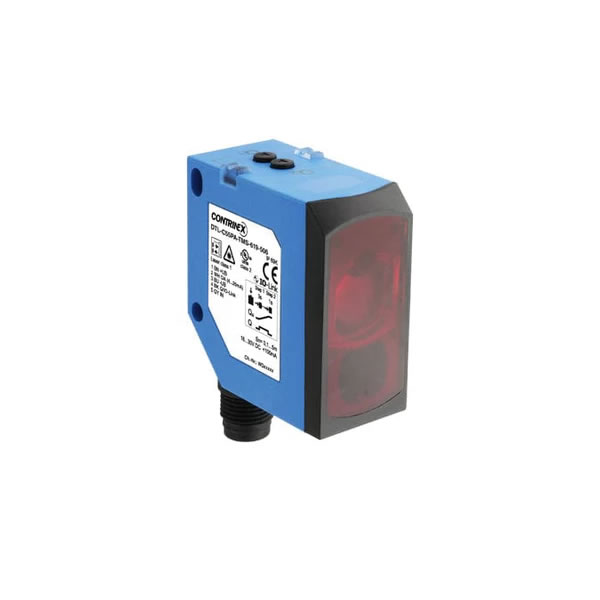

Contrinex DTL-C55PA-TMS-619-506 Photoelectrics Sensor
- Connection：M12 5-pin
- Polarity and Output：Light-on/Dark-on/IO-Link + 4...20 mA / 0...10 V + Teach input
- Stock or Delivery time：In stock
- Tags: Contrinex,Photoelectrics Sensor,DTL-C55PA-TMS-619-506
Do you have any interest in purchasing this product or need further information? Feel free to reach out to our customer service team by phone or via QQ. If you can't find the specific product you're looking for, don't hesitate to contact us for assistance anytime.
Product Detail
Contrinex Photoelectrics Sensor Standard Distance diffuse 50-50-C55-1005000-mm ABS Teach-button input Laser class 1 red 655 nm DTL-C55PA-TMS-619-506
DTL-C55PA-TMS-619-506 Specifications:
Operating range 100...5000 mm
Switching frequency max. 250 Hz
Sensing Linearity ± 30 mm
Supply voltage 18...30
Repeatability < 1.2 mm
Polarity PNP/NPN auto-detect
Output Light-on/Dark-on/IO-Link + 4...20 mA / 0...10 V + Teach input
Sensitivity adjustment Teach button/input
Connection M12 5-pin
Housing size [mm] 50 x 50 (C55)
Enclosure rating IP 67 / IP 69K
Housing material ABS
Resolution 5 mm
Temperature range -40...+60°C
Light source Laser class 1, red 655 nm
Interface IO-Link
Operating principle Distance diffuse
