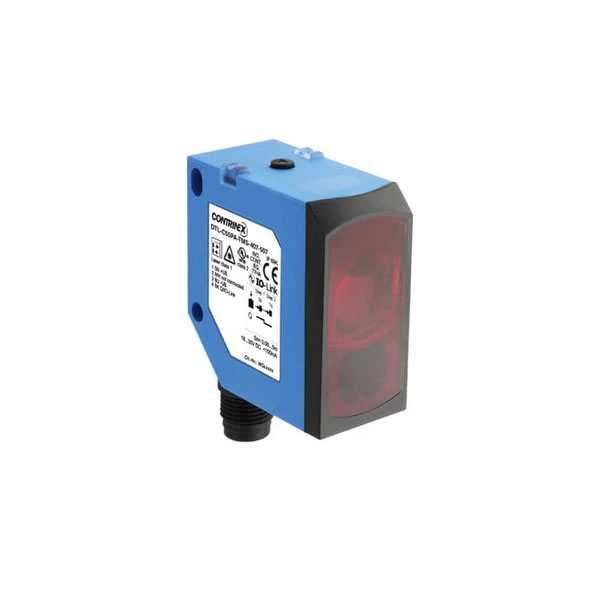

Contrinex DTL-C55PA-TMS-407-507 Photoelectrics Sensor

Connection：M12 5-pin
Polarity and Output：Light-on/Dark-on/IO-Link
Stock or Delivery time：In stock
Tags: Contrinex,Photoelectrics Sensor,DTL-C55PA-TMS-407-507

QQ Chat +86 18826494270

Do you have any interest in purchasing this product or need further information? Feel free to reach out to our customer service team by phone or via QQ. If you can't find the specific product you're looking for, don't hesitate to contact us for assistance anytime.

Product Detail

Contrinex DTL-C55PA-TMS-407-507 Photoelectrics Sensor Standard Distance diffuse 50 x 50 (C55) 60...5000 mm ABS Teach button/input Laser class 1, red 655 nm

DTL-C55PA-TMS-407-507 Specifications:

Operating range 60...5000 mm

Switching frequency max. 500 Hz

Supply voltage 18...30

Polarity PNP/NPN auto-detect

Output Light-on/Dark-on/IO-Link

Sensitivity adjustment Teach button/input

Connection M12 5-pin

Housing size [mm] 50 x 50 (C55)

Enclosure rating IP 67 / IP 69K

Housing material ABS

Resolution 5 mm
