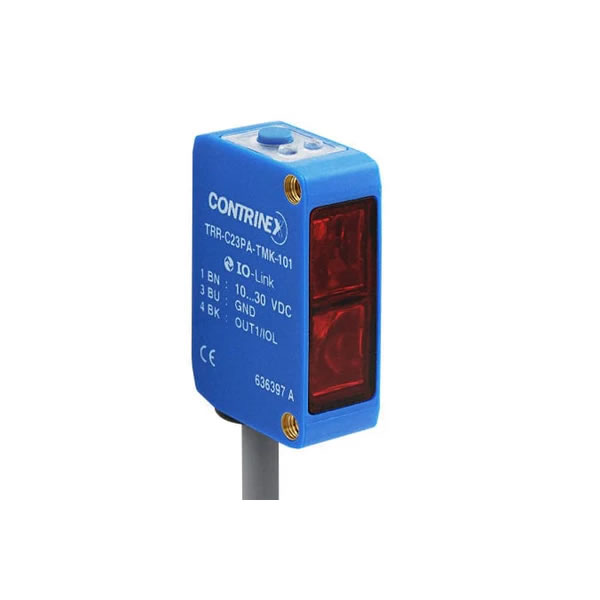

Contrinex TRR-C23PA-TMK-101 Photoelectrics Sensor
- Connection：PVC 2 m 4 wire
- Polarity and Output：Light-on + Dark-on
- Stock or Delivery time：In stock
- Tags: Contrinex,Photoelectrics Sensor,TRR-C23PA-TMK-101
Do you have any interest in purchasing this product or need further information? Feel free to reach out to our customer service team by phone or via QQ. If you can't find the specific product you're looking for, don't hesitate to contact us for assistance anytime.
Product Detail
Photoelectrics Sensor Transparent-object-Transparent-reflex-20-30-C23-204200-mm-ABS-Teach-button-LED-red-630-nm TRR-C23PA-TMK-101
TRR-C23PA-TMK-101 Specifications:
Operating range 20...4200 mm
Switching frequency max. 1500 Hz
Supply voltage 10...30
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment Teach button
Connection PVC, 2 m, 4 wire
Housing size [mm] 20 x 30 (C23)
Enclosure rating IP 67
Housing material ABS
Sensitivity Range Adjustment 30...5000 mm
Temperature range -25...+65°C
Light source LED, red 630 nm
Interface Standard output
Operating principle Transparent reflex
Sensing range max. 10...5000 mm
